Features

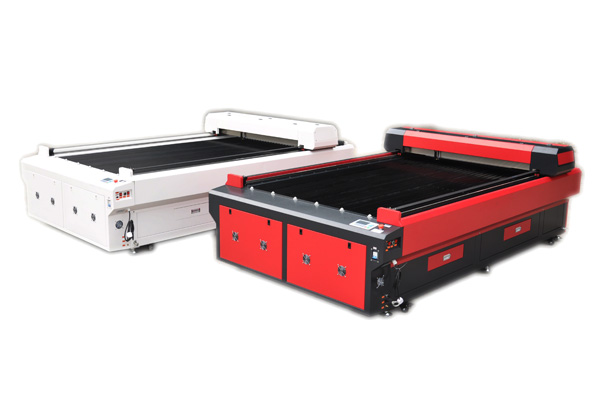

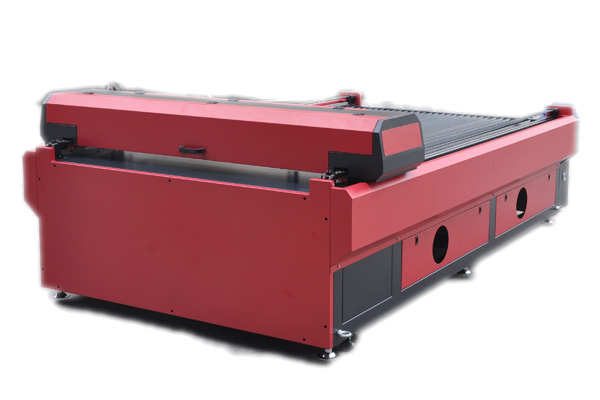

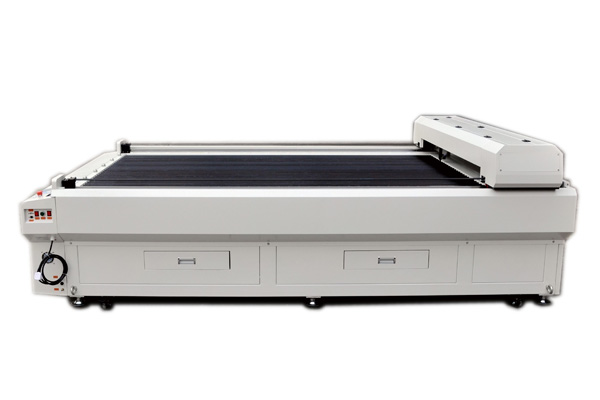

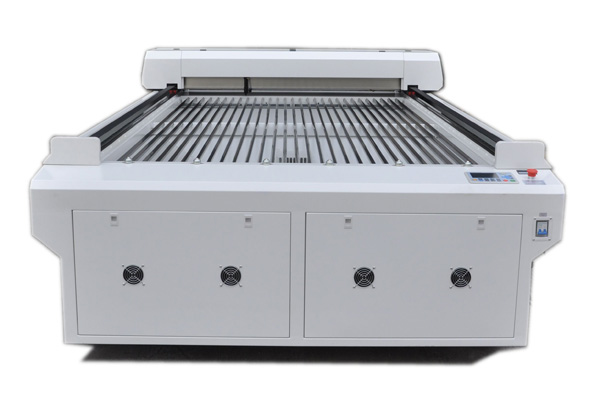

◆ YT-CLT is a large format laser cutting machine cutting, using aluminum plate, or honeycomb panels, mainly for fabric, leather, nonwoven fabric, acrylic cutting.
◆ linear guides, bearing carriage so that movement resistance is smaller, run more smoothly and fast.
◆ Full support for CAD, CORELDRAW, GERBER, Tajima and other design software, the interface is friendly, close to the industry site requirements.
◆ completely out of the computer, memory, multi-document Alternatively, you can run uninterrupted.
◆ laser head can be achieved automatically adjust the spacing, comes array nesting cutting function
◆ When an odd arrangement wherein a laser head can be done automatically stop light, and finally complete full-page cut without damaging the fabric has been cut.
◆ optional power distribution control, manual dual laser head.

Application materials
Car seats, clothing, shoes, bags, toys, home textiles, acrylic and so on.

Technical data

Laser power	60W/80W/100W/130W	Laser cooling	Water-cooled
Laser wavelength	10.64μm	Working speed	0～30m/min
Supply voltage	AC220V±10%	Operating temperature	0～45℃
Repeatability	≤±0.05mm	Working humidity	5%～95%

Machine Type

Type	Area（mm)	Size（mm)	Type	Area（mm)	Size（mm)
YT1325CT	1300×2500		YT2020CT	2000×2000
YT2030T	2000×3000		YT1425CT	1400×2500
