Features

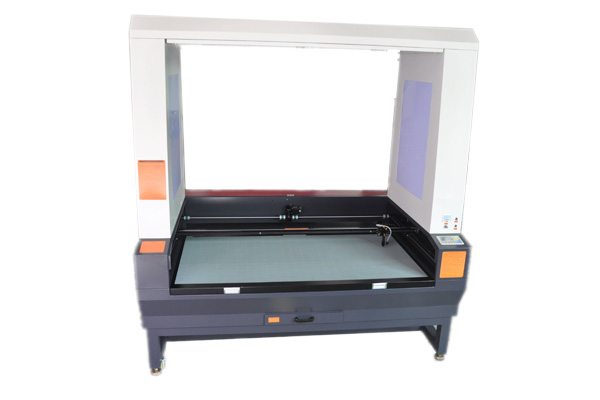

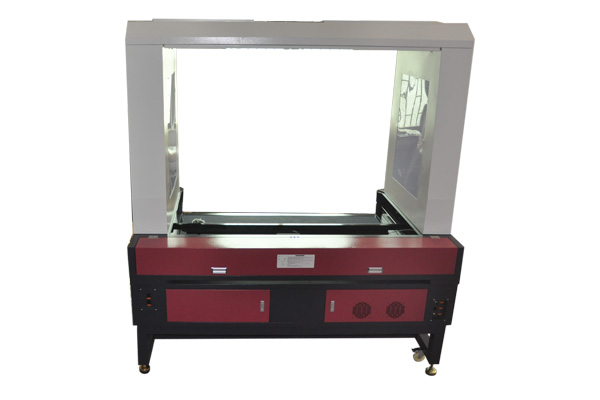

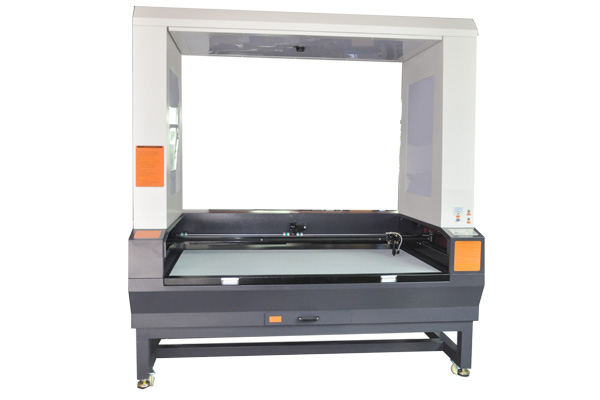

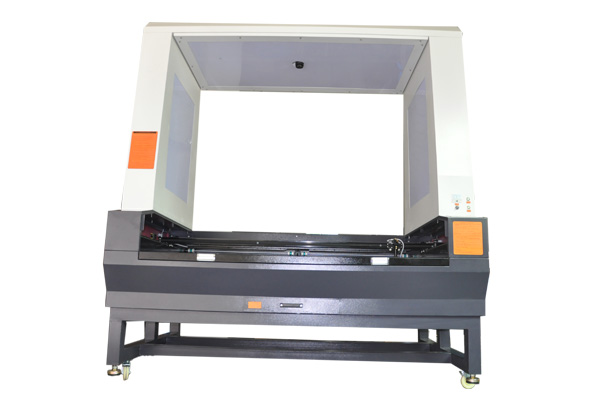

◆   YT-VPT / VPST large format camera positioning automatic cutting machine at the same time have all the features of conventional cutting and engraving machine.
◆   using the camera positioning system, marking the harmony of laser technology, automation technology, artificial intelligence vision technology, will provide users increase production and processing capacity for sustained and positive productivity to provide effective help.
◆   fast continuous curve cutting function, is due to the high-end DSP technology powerful data processing capability, targeted design of computer software systems as well as precision machinery and meticulous coordination, in the case of high speed, straight cut without deformation, not cutting curve distortion.
◆   YT-VPT / VPST large format camera positioning automatic cutting machine at work by a professional camera the whole format intake computers, through the process can automatically search workpiece positioning and accurate cutting, to avoid the user because the positioning are not allowed to struggling to cope.
◆   YT- VPT / VPST large format camera positioning automatic cutting machine can fine fabric tensile deformation automatic tracking compensation ensures cutting all fine.

Application materials
Computer woven Mark, precise camera positioning marks and various special-shaped craft embroidery and cloth and other non-metallic shaped pattern cutting.

Technical data

Laser power	60W/80W/100W/130W	Laser cooling	Water-cooled
Laser wavelength	10.64μm	Working speed	0～30m/min
Supply voltage	AC220V±10%	Operating temperature	0～45℃
Repeatability	≤±0.05mm	Working humidity	5%～95%（无凝水）

Machine Type

Type	Area（mm)	Size（mm)	Type	Area（mm)	Size（mm)
YT960VT	900×600	1470×1110×1100	YT1480VT	1400×800	1970×1360×1100
YT1060VT	1000×600	1570×1140×1100	YT1610VT	1600×1000	2170×1560×1100
YT1390VT	1300×900	1870×1440×1100	YT1810VT	1800×1000	2370×1560×1100
YT1280VT	1200×800	1770×1360×1100
